Deluge System Ppt

Clipping is a handy way to collect important slides you want to go back to later. Deluge Valve is a fixed fire protection system which totally floods an area with pressurized water through a system of piping open nozzles. While in SET position water pressure is transmitted through an external bypass check valve and restriction orifice from the system supply side to the top chamber so. A Deluge system automatic High Velocity Water Spray System is a fixed fire protection system which totally floods an area with pressurized water through a system of piping with open nozzles sprinklers. PowerPoint PPT presentation free to view Water Sprinkler System Manufacturer Supplier - Safeguard Industries is a pioneer in a wide range of services including manufacturing design installation and maintenance of fire sprinkler systems. Deluge systems are used in conditions that require quick application of large volumes of water. Water water Every where But not a.

2 deluge valve with basic trim.

Compliance treatment Halogenated vents Offsite treatment. What is Deluge System and Full working of a DELUGE SYSTEM in a fire fighting building servicesTry t olearn from my videos. Deluge Systems Designed to protect areas that may have fast-spreading fire Must interface with a detection system Causes tremendous quantities of water to flow 12 12 Figure 12-16 Deluge system schematic. Deluge systems are used in conditions that require quick application of large volumes of water. Deluge systems - PowerPoint PPT Presentation. Fire Sprinkler Systems Guy R.

Fire Protection Systems Ppt Video Online Download

Deluge system ppt. Jann DuPont Engineering November 6 2003. PowerPoint PPT presentation free to view Water Sprinkler System Manufacturer Supplier - Safeguard Industries is a pioneer in a wide range of services including manufacturing design installation and maintenance of fire sprinkler systems. It is a quick release hydraulically operated.

It has three chambers isolated from each other by the diaphragm operated clapper and seat seal. The system piping is empty until the controlling valve is activated by a hydraulic or other types of release systems. Standard sprinklers are used but they are all open.

4 pressure alarm switch. And follow on every link what I h. Deluge System Technical Manual for Operation Maintenance and Troubleshooting.

Types and Uses of Deluge Systems 51 Latching Deluge Valves 52 Diaphragm Deluge Valve. The Deluge system provides a faster response to fire by delivering water through all its open heads immediately also at the same time which covers a large area. A free PowerPoint PPT presentation displayed as a Flash slide show on.

Compliance treatment Halogenated vents Offsite treatment. 20 x 200L Drum. The pellet liquefies when heated to a specific temperature releasing the cap that retains the waterair pressure in the system Early-Suppression Fast-Response Sprinkler Head Larger orifices meant for discharging larger amounts of water Deluge Sprinkler Heads No cap or releasing mechanism Sprinkler Head Mounting Styles Retrieved from.

Advantages of Deluge Valve. Foam Water Sprinkler SystemsFoam Water Sprinkler Systems Special system used in places like aSpecial system used in places like a refinery and airport hangarsrefinery and airport hangars. Open Orifice sprinklers on the other hand are primarily used for in water spray systems or deluge sprinkler systems.

Deluge systems contain more components and equipment than wet pipe and dry systems. Deluge Systems Designed to protect areas that may have fast-spreading fire Must interface with a detection system Causes tremendous quantities of water to flow 12 12 Figure 12-16 Deluge system schematic.

Fire Protection Fundamentals Chapter 7 Water Based Fire Protection Systems Equipment Intro Slide Ppt Download

Hangar Water Based Fire Protection Ppt Video Online Download

Ppt Fire Sprinkler Systems Dante Talavera Academia Edu

Automatic Sprinkler Systems Ppt Video Online Download

Automatic Sprinkler Systems Ppt Video Online Download

Automatic Sprinkler Systems Ppt Video Online Download

Basic Training Water Based Fire Protection

Deluge Valve For Transformer Protection Youtube

Automatic Sprinkler Systems Ppt Video Online Download

What Is Deluge System And Its Working Principle Youtube

What Are Deluge Valves Introduction Operation And What Is Deluge System Valves Industrial Automation Plc Programming Scada Pid Control System

Fire Protection Systems Ppt Video Online Download

What Are Deluge Valves Introduction Operation And What Is Deluge System Valves Industrial Automation Plc Programming Scada Pid Control System

Fire Protection Systems Ppt Video Online Download

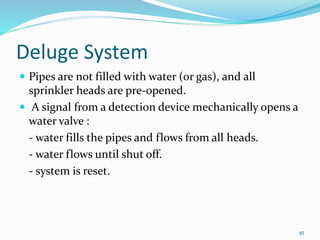

Fire Fighting Systems

Hangar Water Based Fire Protection Ppt Video Online Download

Everything You Need To Know About Deluge Valves Process Industry Forum

Deluge Valve Fire Water Alarm Valves Fire Alarm Systems Buy Deluge Valve Alarm Check Valve Security Alarm System Product On Alibaba Com

Ppt Chapter 12 Systems And Equipment For Fire Protection Powerpoint Presentation Id 2405468

Ppt Of Fire Protection System Power Point Presentation Of Fire Protection And Detection System Youtube

Types Of Ethical Hacking Ppt Powerpoint Presentation File Layouts Presentation Graphics Presentation Powerpoint Example Slide Templates

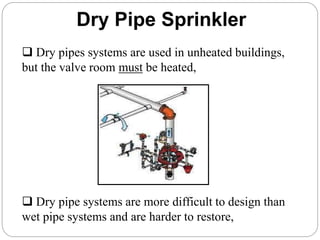

Fire Sprinkler Systems

Automatic Sprinkler Systems Ppt Video Online Download

1

2

Water Spray System Pdf

Ppt Automatic Sprinkler Systems Powerpoint Presentation Free To View Id 41e59c Ndg3m

F470 Deluge Valve Pdf Mechanical Engineering Manufactured Goods

Foundational Data Modelling Clinical Data Integration Ppt Powerpoint Microsoft Presentation Graphics Presentation Powerpoint Example Slide Templates

Ppt Fire Protection Equipment Systems Powerpoint Presentation Free Download Id 5327024

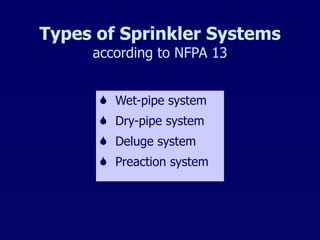

2 5 Suppression Sprinklers Wk12b

Fire Protection Systems Ppt Video Online Download

Water Spray System Presentation Ppt Powerpoint

Ppt The Digital Deluge Lecture 1 Powerpoint Presentation Free To Download Id 56e213 Ztdjm

Hydrant System For Power Plant Fire Protection Electrical4u

Fire Protection Systems Ppt Video Online Download

Fire Sprinkler System Design Software Free Download

Inbal Deluge Valve Pdf Fire Sprinkler System Valve

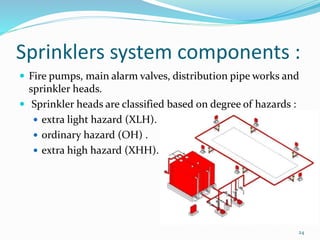

Fire Fighting Systems

Ppt Fire Sprinkler System Powerpoint Presentation Free To Download Id 8c7a30 Mja2m

After The Deluge Plant Revival Post Flooding Trends In Plant Science

Bioinformatics With Python Cookbook Second Edition Learn How To Use Modern Python Bioinformatics Libraries And Applications To Do Cutting Edge Research In Computational Biology Amazon Com Br

Ppt Chapter 9 Water Based Fire Protection Systems Equipment Powerpoint Presentation Id 155605

Ppt Fire Sprinkler System Powerpoint Presentation Free To Download Id 8c7a30 Mja2m

5 Mep Fire Protection Rev Pdf Fire Sprinkler System Fires

Fire Prevention Control Services

Deluge Valve Operation Deluge System Theory Instrumentation Tools

Physical Security Ppt

1

Fire Sprinkler Systems Guy R.

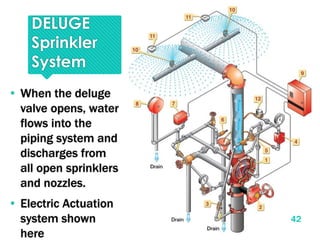

Grant PE University of Illinois at Urbana-Champaign. 3 solenoid valve and electric actuation trim. THE DELUGE Chennai floods courtesy NISHA. Clipping is a handy way to collect important slides you want to go back to later. The system piping is empty until the DV is actuated. Deluge System Technical Manual for Operation Maintenance and Troubleshooting. Releasing Devices 41 Pneumatic Actuators 42 Solenoid Valves 43 Manual Release 44 Pilot Line Detectors 5. It is a quick release hydraulically operated. When fire is detected either by a separate fusible plug system flame detection smoke detector etc the deluge valve is open and the water is released through all open nozzles in the designated zone.

The activating elements fusible link or glass bulb have been removed so that when the control valve is opened water will flow from all of the sprinklers and deluge the are with water. Deluge system on the other hand is a dry system which the piping is dry from the nozzle head up to the location of activation valve usually called deluge valve. Standard sprinklers are used but they are all open. PowerPoint PPT presentation free to view Water Sprinkler System Manufacturer Supplier - Safeguard Industries is a pioneer in a wide range of services including manufacturing design installation and maintenance of fire sprinkler systems. Deluge systems - PowerPoint PPT Presentation. Compliance treatment Halogenated vents Offsite treatment. Discharges a mixture of water and lowDischarges a mixture of water and low expansion foamexpansion foam.
